| Safety and Environmental Standards Compliance |
UL, CE, FCC, Canada ICES, KC, VCCI, RCM, UKCA RoHS, WEEE, REACH |
| Security Compliance |
- FIPS 140-3 Level 3 eIDAS and Common Criteria EAL4 + AVA_VAN.5 and ALC_FLR.2 certification against EN 419 221-5 Protection Profile, under the Dutch NSCIB schemeCan form the basis of an EN 419 241-2 certified remote signing system for eIDASCompliant with BSI AIS 31 for true and deterministic random number generation
- Validated progress toward quantum-safe cryptography: Entrust nShield HSM implementations of ML-DSA, ML-KEM, and SLH-DSA have achieved validation through NIST’s Cryptographic Algorithm Validation Program
|
| Supported APIs |
PKCS#11, OpenSSL |
| Supported Cryptographic Algorithms |
- Post-quantum cryptography: Native firmware support for NIST-standardized post-quantum algorithms, including ML-DSA, ML-KEM, and SLH-DSA, with a crypto-agile architecture designed to support future algorithm updates through firmware
- Full NIST Suite B implementation
- Asymmetric algorithms: RSA, Diffie-Hellman, ECMQV, DSA, El- Gamal, KCDSA, ECDSA (including NIST, Brainpool & secp256k1 curves), ECDH, Edwards (Ed25519
|
| Ed25519ph) |
- Symmetric algorithms: AES, AES-GCM, Arcfour, ARIA, Camellia, MD5 HMAC, RIPEMD160 HMAC, SEED, SHA-1 HMAC, SHA-224 HMAC, SHA-256 HMAC, SHA-384 HMAC, SHA-512 HMAC, Tiger HMAC, 3DES
- Hash/message digest: MD5, SHA-1, SHA-2 (224, 256, 384, 512 bit), HAS-160, RIPEMD160, SHA-3 (224, 256, 384, 512 bit)
- Elliptic Curve Key Agreement (ECKA) available via Java API and nCore APIs
- Elliptic Curve Integrated Encryption Scheme (ECIES) available via Java API
|
| PKCS#11 and nCore APIs |
TUAK & MILENAGE algorithm support for mutual authentication and key generation (3GPP), Supported Platforms |
| Specifications |

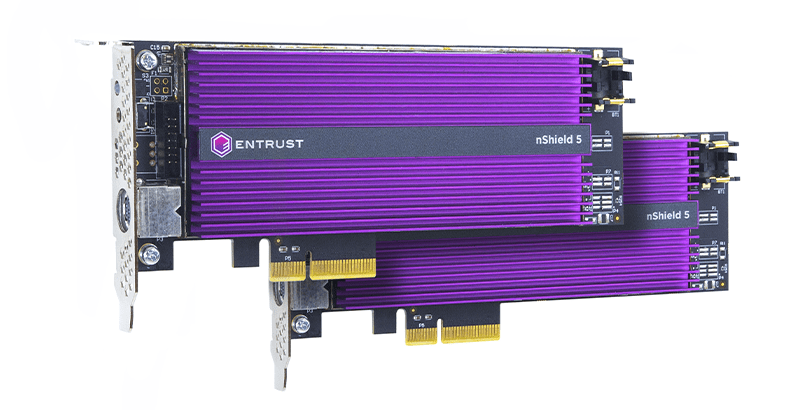

nShield 5s HSM: 1,702,841 hours, nShield 5s modelsBaseMidHighML-DSA signing performance (tps) for NIST standardized PQC schemesML-DSA443407902,780ML-DSA652407901,920ML-DSA872107901,570RSA signing performance (tps) for NIST recommended key lengths2048 bit6703,94913,6144096 bit1358142,2008192 bit19115309ECC prime curve signing performance (tps) for NIST recommended key lengths256 bit2,0857,55321,826512 bit1,0105,97716,164Key generation (key/sec)RSA 2048 bit72023ECDSA P-256 bit1,0403,5803,494ECDSA P-521 bit5182,4802,724Key agreement performance (transaction/sec)ECDH P-256 bit2,0857,55021,436 |
